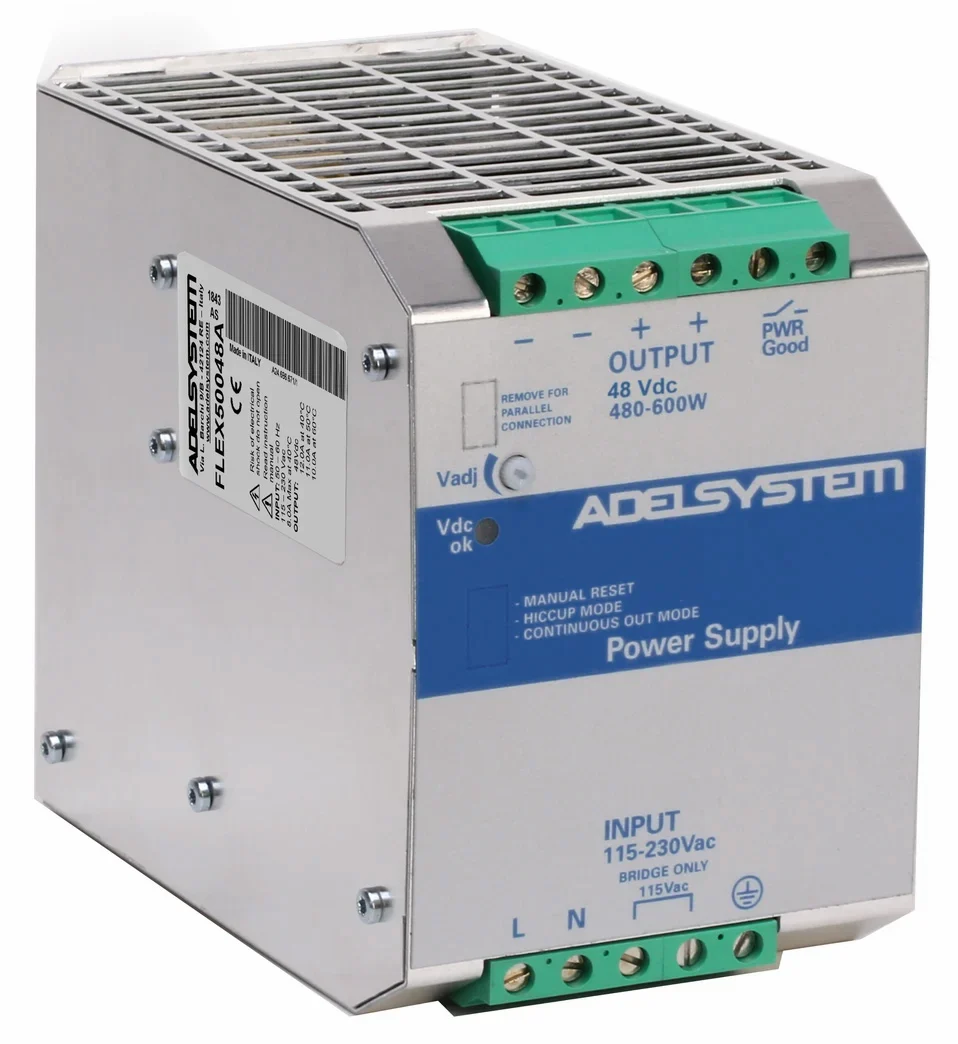

FLEX DIN Rail Power Supply
Flexible AC-DC DIN rail power supply range available in 1, 2 and 3-phase input versions, covering power levels from 36W up to 600W with output currents up to 25A. Based on a semi-resonant switching circuit reaching up to 93% efficiency, with a "Power Boost" of up to 150% of rated output to handle demanding loads. Features a "Power Good" relay for monitoring and three selectable overload protection modes (Hiccup, Fold Back, Restart after Main). Conforms to EN 60204-1 (Safety of Electrical Equipment of Machines) and offers a single product covering 230/400/500 Vac input to minimise stock variants.
Request a Quote

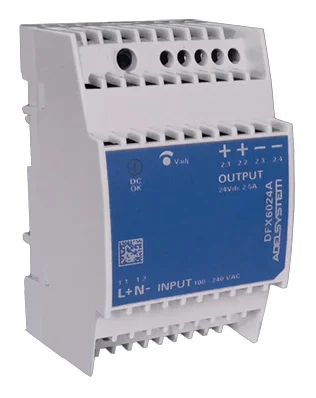

DFLEX Compact DIN Rail Power Supply
Compact, high-efficiency single-output switching power supply for DIN rail mounting, rated from 15W to 72W. Capable of supplying full rated current without derating up to 55°C ambient and featuring power boost to handle short current spikes (the 15W model can reach over 20W, the 60W model up to 72W). Output voltage is adjustable via trimmer, with a green LED load/output status indicator, short-circuit, overcurrent, overload and overheating protection.
Request a Quote

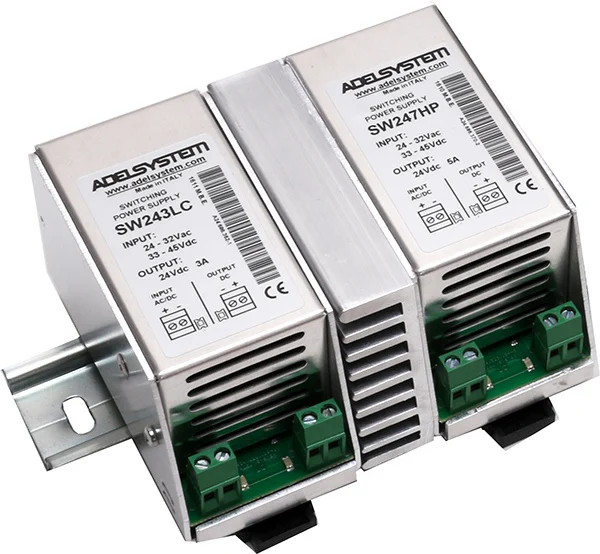

SW Single-Output Power Supply
Compact single-output switching power supply range offering a strong price-performance ratio, with efficiency up to 90%. Available in 5, 10, 12 and 24 Vdc output versions at current ratings from 3A to 7A, suited to general automation and control panel applications where a small footprint and economical solution are required.
Request a Quote

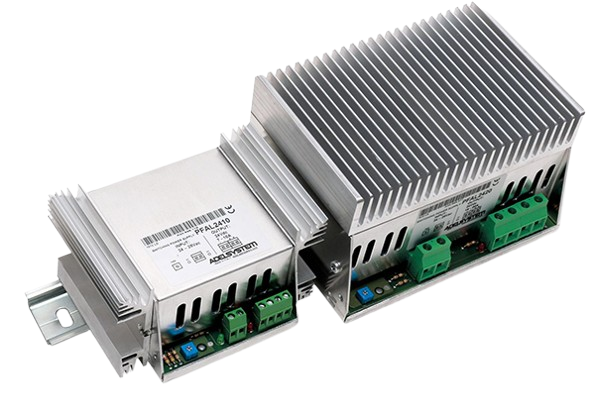

PFAL DC-DC Power Supply
DIN rail mounted DC-input power supply range accepting a single-phase 24-48 Vac/Vdc transformer secondary input and delivering an adjustable (±10%) 5, 12 or 24 Vdc output at up to 20A. Designed for continuous operation to 70% of rated current, with built-in short-circuit and overload protection, parallel operation capability, and a compact metal DIN rail enclosure.
Request a Quote

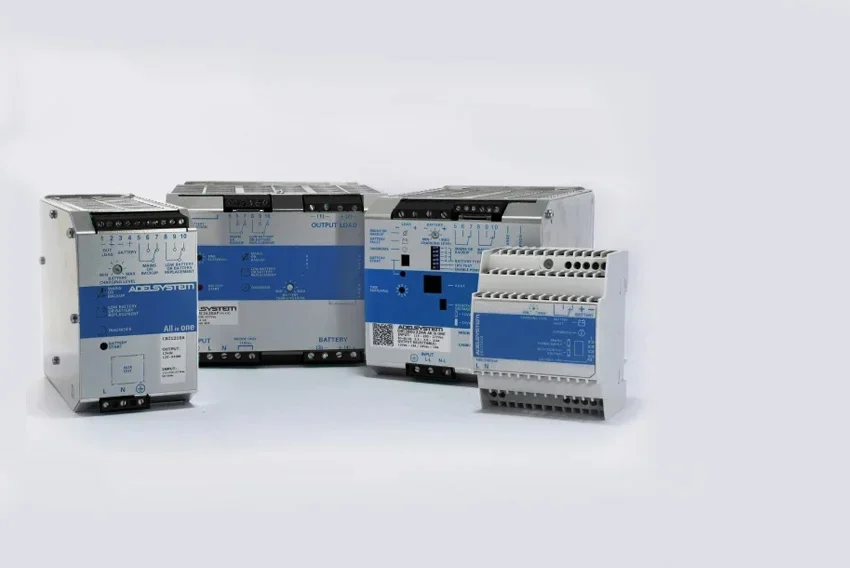

CBI All-In-One DC-UPS
DC-UPS "All In One" module combining the functionality of a power supply, backup module, battery charger and battery tester in a single DIN rail unit, with power levels from 36W to 600W and 12, 24 and 48 Vdc output versions. Uses Adelsystem's Battery Care technology to apply the correct charging profile for lead-acid, AGM, GEL, Lead Crystal, Lithium/LiFePO4, NiCd and NiMH batteries, continuously testing battery condition and reporting State of Health (SOH) so a failing battery can be flagged before it fails outright. Standard models communicate via Modbus RTU RS485, reporting over 100 parameters on DC-UPS and battery status; Ethernet variants add SNMP, Modbus TCP/IP and HTTPS for IoT-based remote monitoring.
Request a Quote

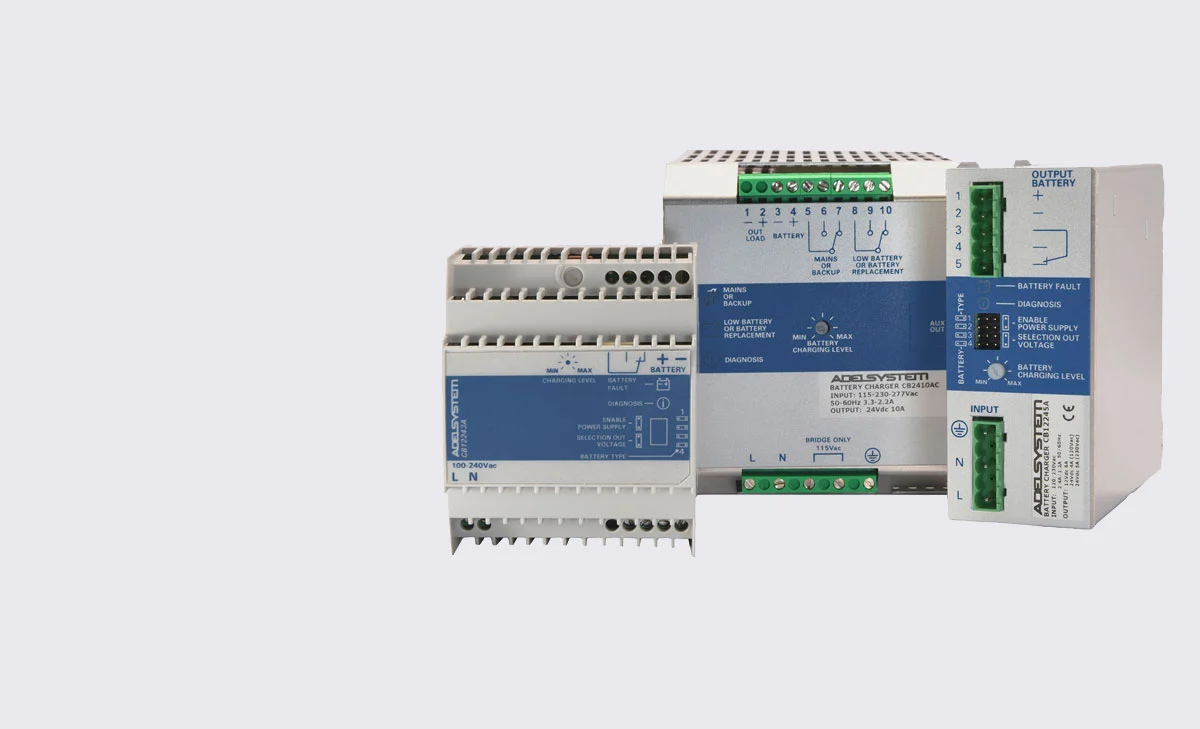

CB Smart Battery Charger
DIN rail mounted "Smart Battery Charger" using switching technology and Adelsystem's Battery Care philosophy to deliver a fully automatic, multi-stage charging cycle. Suited to Open Lead Acid, Sealed Lead Acid, Lead Gel, Ni-Cd and Li-Ion batteries via jumper-selectable charging curves, with an IUoU (constant current/constant voltage) charging profile and a real-time auto-diagnostic system that detects short-circuited cells, reverse polarity and battery disconnection, reported via a blinking diagnostic LED. A CANbus J1939 variant (CB...J models) is available for integration with vehicle and machine control networks, alongside a "power supply function" mode that allows the charger to run connected loads directly.
Request a Quote

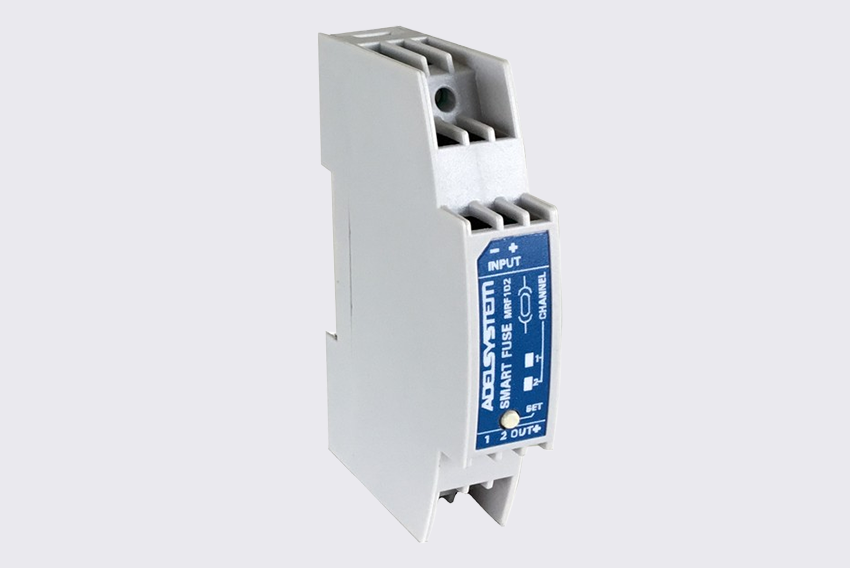

Electronic Fuse (MRF Series)
DIN rail and wall-mountable electronic switch/fuse module (e.g. MRF102) for the power distribution and protection of 12V or 24V load circuits. Provides selective, resettable overcurrent protection per channel in place of traditional mechanical fuses, limiting output power in accordance with NEC Class 2 where required and helping prevent a single faulted branch circuit from bringing down the whole DC bus.
Request a Quote

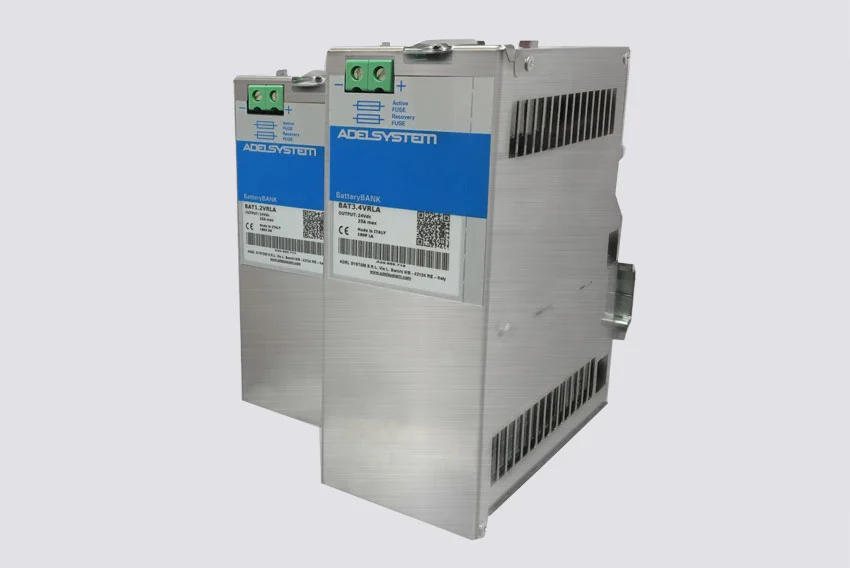

Sealed Lead-Acid Battery Module
Maintenance-free sealed lead-acid (VRLA) battery module designed for use with Adelsystem's CBI "All In One" DC-UPS range, available in 12 Vdc and 24 Vdc (2 x 12 Vdc) configurations and multiple capacities (1.2 Ah, 3 Ah, 7.2 Ah, 12 Ah and higher). Batteries are pre-wired and protected by a series blade fuse, with simple screw-terminal connection to the power module for fast installation and replacement.
Request a Quote

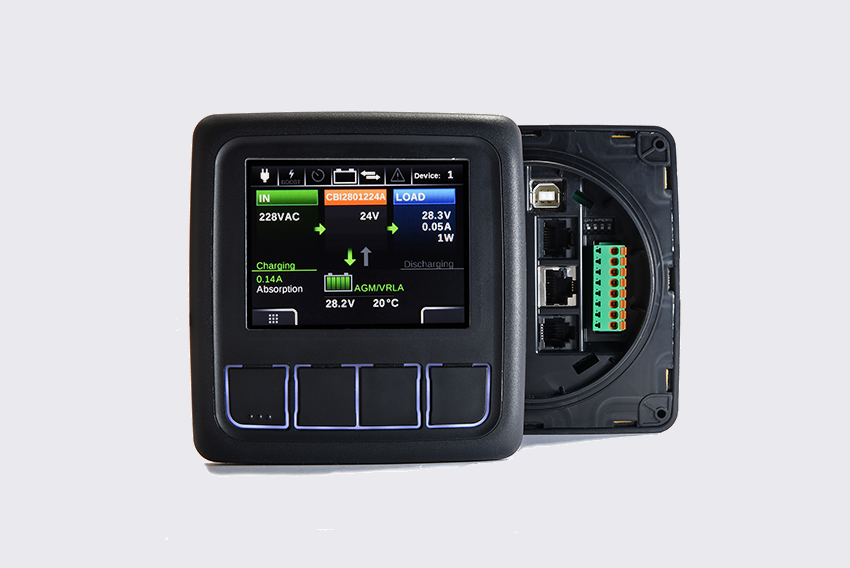

DPY351 Monitor & Control Panel
Multifunction monitoring and control panel for ADELBus-networked Adelsystem devices (DC-UPS, power supplies and battery chargers), featuring a high-brightness, wide-viewing-angle 3.5" TFT touchscreen with anti-reflective coating. Supports monitoring of input/output data, peak voltage and current, and battery parameters (temperature, state of charge, internal impedance); allows remote configuration of connected devices; and provides historical logging plus user-programmable automation "events" across the network. Communicates via Ethernet, CAN bus, USB and Modbus/SNMP/SAE J1939 protocols, and supports MQTT connection to the ADELView System cloud for remote IoT monitoring. Up to 30 devices can be chained on a single ADELBus network.
Request a Quote

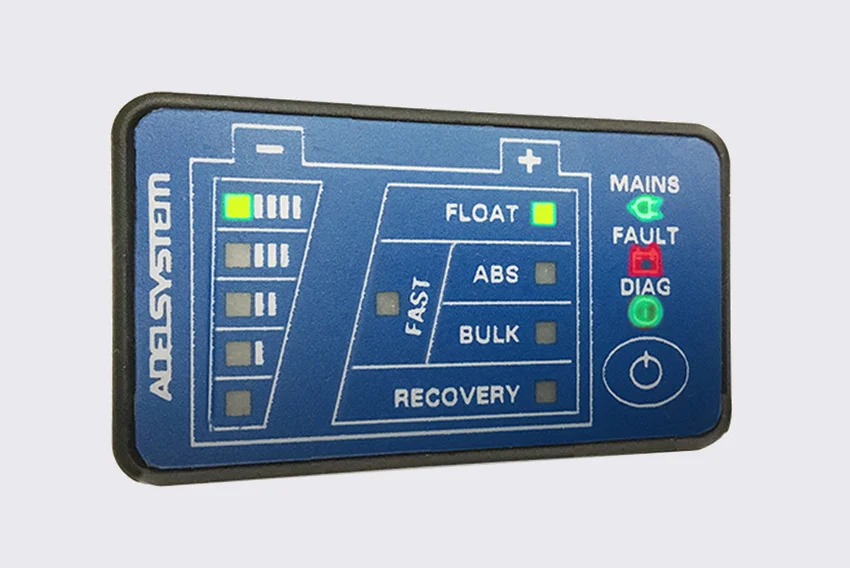

DPY353 Compact Display Module
Compact LED multifunction display for direct connection to Adelsystem CBI series DC-UPS units via the AUX1 port, giving local visibility of battery state of charge, charging current and operating/alarm conditions. A built-in push-button provides direct control functions such as starting the CBI from battery power and selecting the charging current or charge state. Designed for panel mounting (28mm cut-out), IP65 rated, with low power consumption (under 10mA typical).
Request a Quote

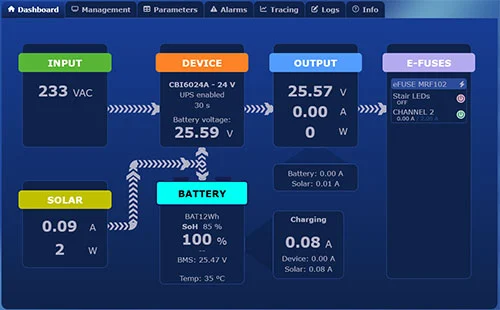

ADELView System
PC-based software suite for the comprehensive remote monitoring and management of Adelsystem devices connected across an ADELBus network. Allows configuration and customisation of connected DC-UPS, power supply and battery charger parameters, continuous system-wide monitoring, and detailed logging/history of charging cycles, alarms and Ah throughput, increasing overall system reliability and giving early warning of developing battery or power issues.
